James Dawson | Clamco 4C and 6C Combo Shrink Wrap Machines

Heavy duty combo shrink wrap machines

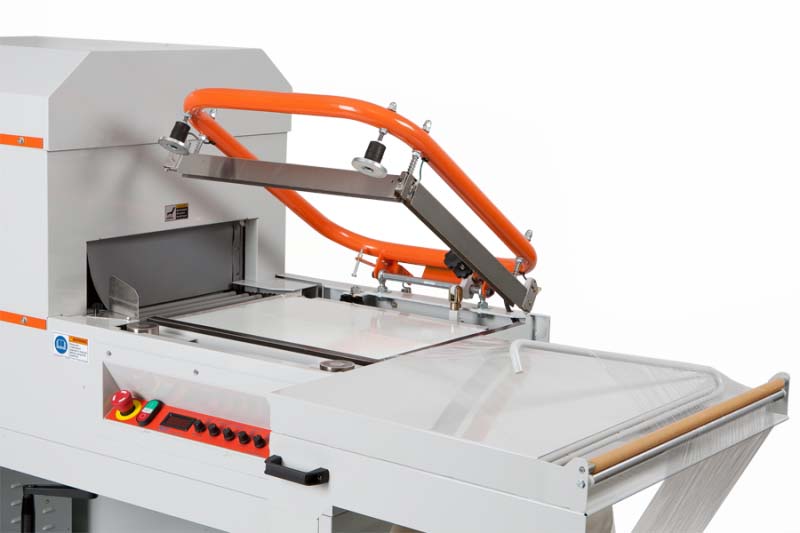

The Clamco 4C and 6C combo shrink wrap machines combine a heavy duty L-bar sealer and shrink tunnel for packing, sealing, and shrink wrapping a variety of products. Clamco combo shrink wrap systems can be used with a wide range of films due to their precise temperature and speed controls. These combo shrink wrap machines come with a standard power take-away system and are available with a sealer arm that works manually, pneumatically, or with a motor.

Built for performance

The robust design of the Clamco systems provides the framework for greater productivity and ensures consistently strong seals. The digitally temperature controlled tunnel provides for consistent shrink. The use of integrated application-specific controls allow for easy and fast operator set-up and provides for years of trouble free operation.

Industry leading durability and technology

The Clamco 4C and Clamco 6C combo machines are heavy duty shrink systems engineered for 24/7 use. Designed to minimize maintenance and provide consistent strong seals they can be used with a wide range of films. The Clamco seal system eliminates the need for a hot knife seal bar by utilizing a unique seal wire temperature control system. The Clamco system has a single adjustable height control for the product take-away and tunnel conveyor to deliver smooth product transfer. The height of the tunnel chamber is adjustable, increasing shrink efficiency for short products. Additionally, Green Mode allows for the Clamco 4C and Clamco 6C to slow down and conserve energy when the machine remains idle for several minutes.

Clamco 4C and 6C Combo L-bar sealers and shrink tunnels are made in the USA and include a 3 year limited warranty.

Leasing Options from $180/month

Features

L-Bar Sealer Features

Proprietary seal temperature control provides consistent seals and longer wire life
Heavy duty dual magnetic hold down ensures consistent seal
Quick conveyor height adjustment facilitates centering of the seal on the product
Adjustable package tray and film cradle with pinwheel perforator enhances technician productivity

Shrink Tunnel Features

Power Take-away System enhances technician productivity
Live/dead roller system allows the use of a wide variety of films
Green Mode allows the system to slow down and conserve energy when not in use
Digitally controlled tunnel temperature with 360° air circulation for top performance
Adjustable tunnel chamber height increases shrink efficiency
Side and bottom dampers for optimal air flow adjustment

Operating Features

Convenient trim collection reduces clean-up
Easy-to-use operator controls require minimal training
Low film cradle for easy access when changing rolls
Heavy duty construction built for 24/7 service
Automatic cool down and shut off function extends the life of the machine

Safety Features

Designed to meet CE safety requirements
Adjustable foot pads to ensure operator safety and machine stability
Emergency stop button

Specs

Model	Clamco 4C Combo	Clamco 6C Combo
Seal length (end)	18.5″	27.5″
Seal length (side)	21.5″	33″
Film width (max)	24″	32″
Tunnel opening width	15.5″	25.5″
Tunnel opening height (std./opt.)	9″/13″	13.5″/17.5″
Tunnel inside height (std./opt.)	11″/15″	15.5″/19.5″
Tunnel inside length	26.5″	34″
Tunnel power	6,000 watts	9,000 watts
Overall dimensions	84″L x 31″W x 57″H	110″L x 39″W x 62″H
Electrical Requirements	220V, 20 amp, 3 Ph	220V, 30 amp, 3 Ph
Weight	666 lbs	970 lbs
Shipping weight	904 lbs	1225 lbs
Warranty	3 years	3 years

Videos

Resources

Options

L-Bar Options

Automatic (pneumatic or motorized) closing seal bar arm—improves ergonomics and increases production rate
Power film unwind—assists in the transport of the film during loading

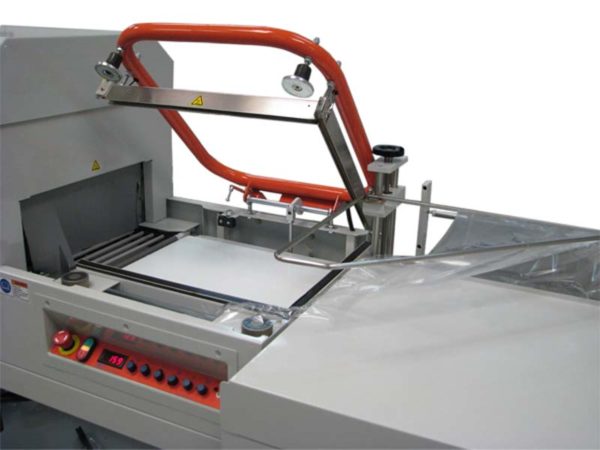

Inverting head with power film unwind—load product from the side with greater ease to reduce product load time
Trim take-up wheel—winds up excess trim to keep work area neat
Blower table—blows the film open via holes on the load table to make it easier to load large products
Electric hole punch—ideal for heavier films too thick to be perforated

Tunnel Options

4″ tunnel height extension—for tall products
1″ roller spacing—increases air flow from the bottom of tunnel to the product
Mesh belt overlay—used when shrink wrapping small products

Other Options

Double film cradle—allows the user to keep two rolls of film on the machine
Exit Conveyor—allows packages to quickly roll away from the machine
304 or 316 stainless steel construction—for food environments or those where corrosion is an issue
Spare parts kit—contains the most common consumable parts
220V 1 phase—for environments that do not have 220V 3 phase

Additional customization is offered to meet various packaging applications. Please contact us for details.
